2008 TARNOW (TOOLMEX) TUR-930

2008 Toolmex-Poreba TUR-930 Heavy Duty Big Bore Oil Country 12.5" Thru-Hole 37.4" Swing 157" Centers CNC 12.5" Hollow Spindle Lathe Manual Plus CNC Lathe. Excellent Capability Helps Operators Run More Productive with Siemens 810D CNC Job Shop Conversational Control Programing

** Top Condition Tri-V Ways Dove Tail Ways
** Machine Special 2-Part Epoxy Paint with New Plexiglass!!

Special Features:
Extra Heavy-Duty Headstock
30/45 HP. Main Drive with CSS 2-Range Headstock
Big Bore Oil Field Country 12.5" Spindle Bore
24.5" Wide Tri-V Bed Design with Extra Wide V-Dove Tail Ways.

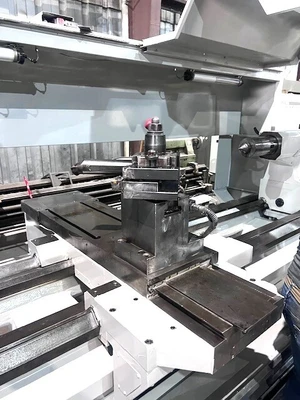

Full Length Cross Slide 14" Wide Bridge
11,000 Lbs. Between Centers with Steady Rest
Enhance "Thread Repair" Cycles
Heavy Duty Tailstock 5" Diameter Quill

Main Specifications
Capacity 37.4" x 157"
Swing Over Bed 37.4"
Distance Between Centers 157"
With Tailstock 148"
Swing Over Cross Slide 24.8"
Hole Thru Spindle 12-1/2"
Spindle Nose A2-20
Spindle Speeds 4 to 500 RPM
Taper of Spindle Bore & Center MT6
Cross Slide Travel 21.25"
Tailstock Quill Travel 11-3/4"
Tailstock Quill Diameter 4.9"
Inch Threads
Metric Threads
Modular Pitches 0.5 to 7 m
Diametrical Threads 4 to 56 D.P.
Dimensions (W x L x H) 11608" x 200" x 95"
Weight 21,600 Lbs.

EQUIPPED WITH:
Siemens 810D CNC Conversational Job Shop Programing Control
3- Jaw Chucks Steady Rest
Taper Attachment
4 Way Rapid Traverse
Chip Pans Steady Rests

Special Offered Reduced Price:......... $ Please Email Request

F.O.B: Machine Prep & Rigging Included in Price.

Machine is in our showroom Under Power for Inspection on Interest.
