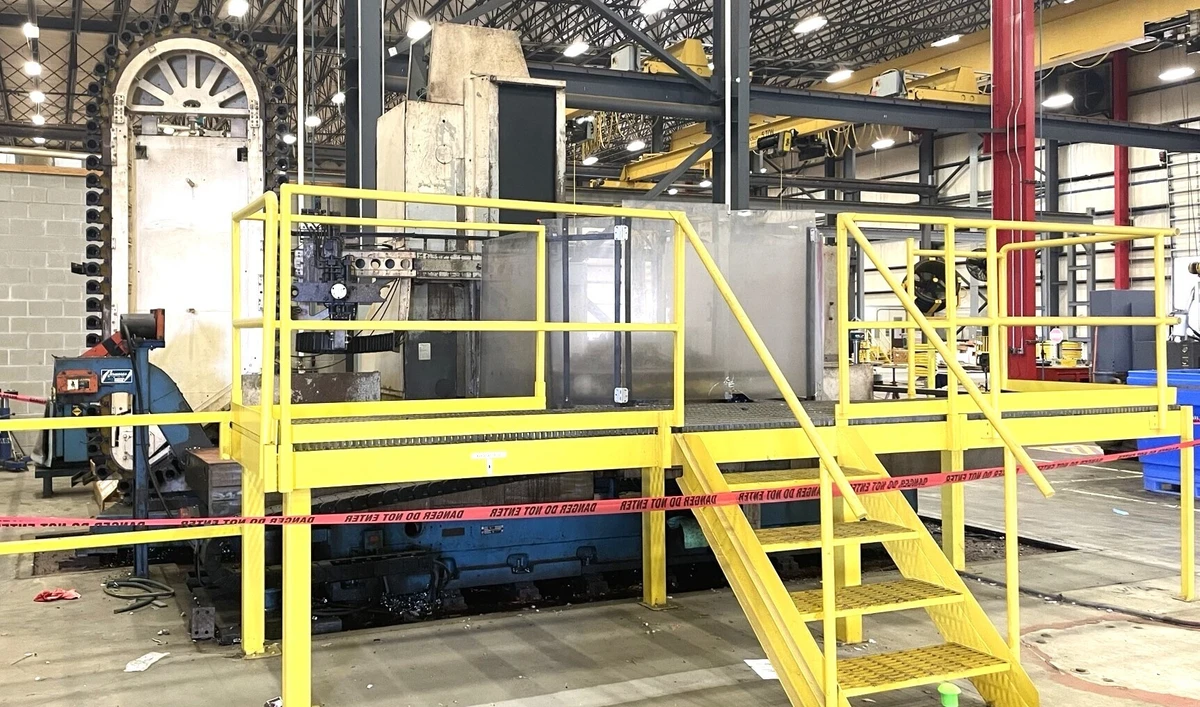

2000 OLYMPIA HT120 X 80
Horizontal Table Type Boring Mills
Olympia HT120X80 CNC 5" Horizontal Boring Bar Fanuc 16iMB CNC Control
Main Specification:
Spindle Diameter 5" Diamater
Spindle Taper ISO 50 Taper
X-Axis Travel 102"
Y-Axis Travel 79"
Z-Axis Travel 27.9
Max Travel W-Axis 49.2"
Rotary Table Size 50" x 63"
Rotary Table Capacity 20,000 Lbs.
Spindle Speed Range Infinitely Variable 1-3000 RPM's
Spindle Drive 50 Hp.
Tool Changer Capacity 60 Tools
Weight 89,400 Lbs.
Machine Requires New Spindle Bearings Ready to Install.
Under Power on Control Operation on Request.
| Spindle Size | 5" |
| X-Horiz Tvl of Table | 102.36" |
| Y-Vert Tvl of Head | 79" |
| Power | 50 hp |
| RPM | 3,000 RPM |
| Table-W | 50" |
| Table-L | 63" |
| Spindle Tvl. | 27.9" |
| Control | CNC (Fanuc 16IMB) |
| Dimensions | Lenght 372" x Width 287" x Height 169" |
| Weight | 89,400 Lbs. |
Olympia HT120X80 CNC 5" Horizontal Boring Bar Fanuc 16iMB CNC Control
Main Specification:
Spindle Diameter 5"
Spindle Taper ISO 50 Taper
X-Axis Travel 102"
Y-Axis Travel 79"
Z-Axis Travel 27.9
Max Travel W-Axis 49.2"
Rotary Table Size 50" x 63"
Rotary Table Capacity 20,000 Lbs.
Spindle Speed Range Infinitely Variable 1-300 RPM's
Max Spindle Torque 1,300 Lb-Ft.
Spindle Drive 50 Hp.
Fast Travel Speed 157" Inch Min.
Coolant Tank Capacity 106 Gallons
Tool Changer Capacity 60 Tools
Weight 89,400 Lbs.
460 Volts -3 Phase
All Transformer & Electrics In Photos Included.
Special Offer Reduced Pricing with Reasonable Prep & Rigging.
Please Email for More Details and Interest.
Sincerely,
Mark Murphy
Olympia HT120X80 CNC 5" Horizontal Boring Bar Fanuc 16iMb CNC Control
Jorgensen Side Discharge Chip Conveyor
Transformers
All Options & Tooling in Photos,
Installed for Inspections.
